Monacor DADC-144DT 4-Channel transceiver

4-channel Dante transceiver with 4 XLR I/O, up to 96 kHz, 48 V phantom power, mute function and network integration in a compact 1 RU rack format

Product no:

737 EUR /pc.

AV-CONNECTION

Fast worldwide delivery

+20 years of experience

30 days return policy

Price protection

5-star customer service

Highlights:

• 4-channel Dante® transceiver with 4 XLR inputs and 4 XLR outputs
• Supports 44.1/48/88.2/96 kHz sampling rates and up to 32-bit resolution
• Individual level adjustment and mute function for each channel
• Phantom power (48 V) can be activated per input
• Compact 19" rack format (1 RU) with metal housing
• LED indicators for signal, peak, network activity and power
• Combine Dante® sources and receivers via software
• Secure, stable and professional audio integration via EtherCon/RJ45

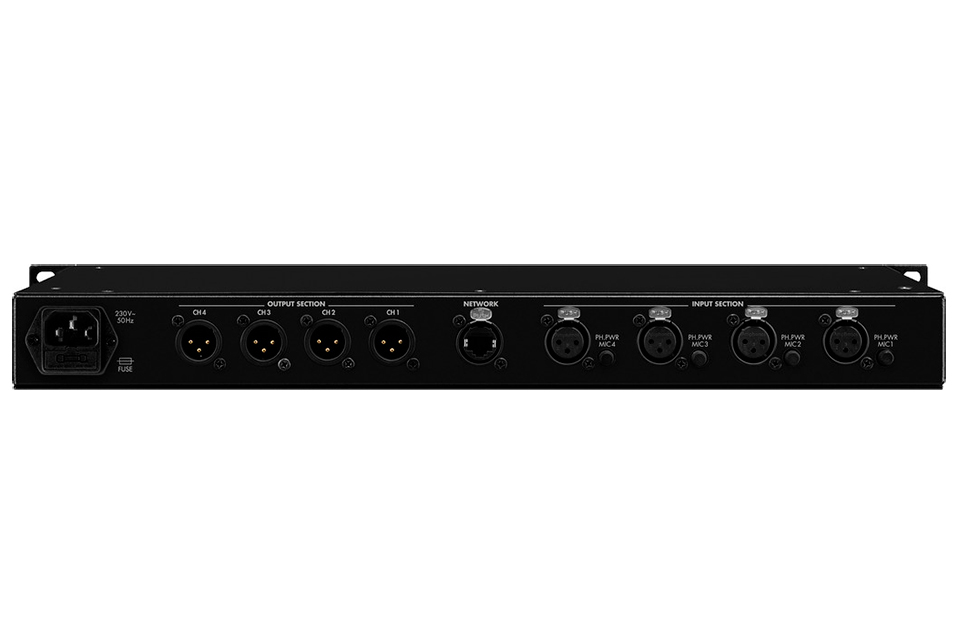

Flexible Dante® audio interface for professional installations:

This 4-channel Dante® transceiver is designed for installation environments where reliable and flexible audio routing is essential. Featuring 4 balanced XLR audio inputs and 4 corresponding XLR outputs, the unit is ideal for both permanent and temporary AV setups. It supports 16-, 24- and 32-bit encoding and operates at sampling rates up to 96 kHz, ensuring high-quality audio reproduction. Each channel can be individually adjusted using recessed potentiometers for input and output levels. The addition of 48 V phantom power per input enables the use of professional condenser microphones, while the handy mute function on each output increases flexibility during live setups and configuration.

Ready for rack and network integration:

Housed in a robust metal chassis and measuring 482 mm in width (1 RU), the unit is perfect for rack mounting in both fixed installations and mobile setups. The integrated EtherCon/RJ45 connector ensures a reliable and professional connection to your Dante® network, and software-based routing allows flexible source-receiver combinations. The LED display on the front panel provides a quick overview of signal, peak, network status and power—essential for demanding AV environments. This is the solution for AV installers seeking professional audio quality and flexible Dante® routing in one compact and rugged module.

Specifications:

• 4 x XLR inputs (balanced)
• 4 x XLR outputs (balanced)
• 1 x Dante® EtherCon/RJ45 input/output
• Resolution: 16/24/32-bit
• Sampling rates: 44.1/48/88.2/96 kHz
• Frequency range: 20–20,000 Hz
• Gain: 0.2–5.2x
• Input sensitivity: 5.7 mV – 2.3 V
• S/N ratio: > 90 dB
• THD: < 0.005%
• Phantom power: 48 V per input
• LED indicators: signal, peak, network, power
• Power supply: 230 V / 50 Hz / 15 VA
• Dimensions: 482 x 44.5 x 238 mm (1 RU)
• Weight: 2.9 kg
• Operating temperature: 0 – 40 °C
